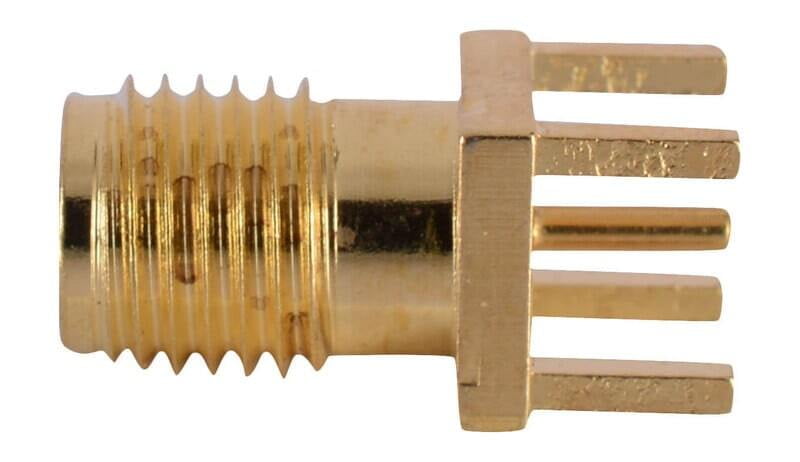

SMA Connector Female-Straight-CO-798-D

This is a SMA straight connector, highly suitable for prototyping with the cellular devices and GPS that needs an antenna connection. The female signal pin present in this connector correctly mate with the original SMA type antenna and ensures reliable functioning.

Get the high-quality SMA Connector Female-Straight at the best price in India.

SMA Connector Female-Straight Features:-
SMA Connector, Female, Straight ,PCB Connector, Plate Edge Mount, Copper, Gold Plating
Excellent electrical performance up to 18GHz with low reflection
Thread type coupling mechanism ensure small loss and high security in compact design

SMA Connector Female-Straight Specifications:-
Impedance：50 ohm
Frequency Range: 0~6 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Meg ohms min.)

To know more about all the latest Products of SMA Connectors, you can visit www.campuscomponent.com

Attachment:-
SMA Connector Female-Straight Datasheet
