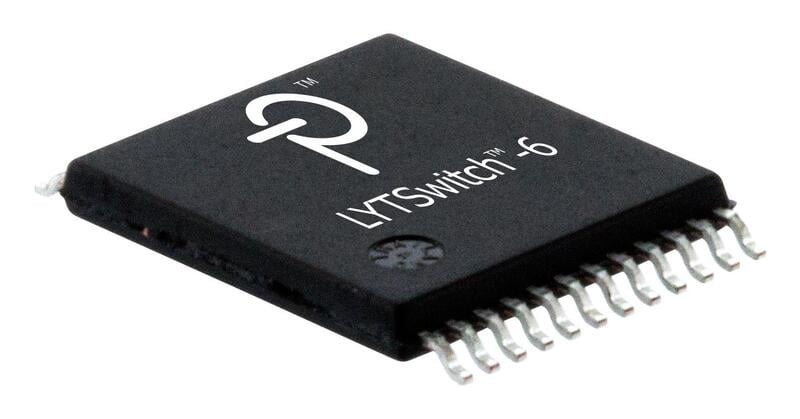

Power Integrations LYT6068C – IC-371-D

Get the high-quality Power Integrations LYT6068C at the best price in India.

The LYT Switch™-6 series family of ICs dramatically simplifies the development and manufacturing of off-line LED drivers, particularly those in compact enclosures or with high efficiency requirements. The LYTSwitch-6 architecture is revolutionary in that the devices incorporate both primary and secondary controllers, with sense elements and a safety-rated feedback mechanism into a single IC. Close component proximity and innovative use of the integrated communication link, Flux Link, permit accurate control of a secondary side synchronous rectification MOSFET with Quasi-Resonant switching of primary integrated high-voltage MOSFET to maintain high efficiency across the entire load range.

Power Integrations LYT6068C Features:-
Highly Integrated, Compact Footprint
Up to 94% efficiency across full load range
Incorporates a multi-mode Quasi-Resonant (QR) / CCM / DCM fly back controller, 650 V or 725 V MOSFET, secondary-side control and synchronous rectification driver
Integrated Flux Link™, HIPOT-isolated, feedback link
Exceptional CV/CC accuracy, independent of transformer design or external components
Adjustable accurate output current sense using external sense resistor EcoSmart™ – Energy Efficient
Less than 15 mW no-load including line sense (without PF front end)
Designs using LYTSwitch-6 easily meet Energy Star and all global lighting energy efficiency regulations
Low heat dissipation Advanced Protection / Safety Features
Input line OV with auto-restart
Output fault OVP/UVP with auto-restart
Open SR FET gate detection
Input voltage monitor with accurate brown-in
Thermal foldback ensures that power continues to be delivered (lower level) at elevated temperatures Full Safety and Regulatory Compliance
Reinforced insulation
Isolation voltage >4000 VAC
100% production HIPOT compliance testing
UL1577 and TUV (EN60950) safety approved Green Package
Halogen free and RoHS compliant Applications
Isolated off-line LED driver
Smart LED lighting
High-voltage fly back post regulator
Attachment:-
Power Integrations LYT6068C Datasheet
