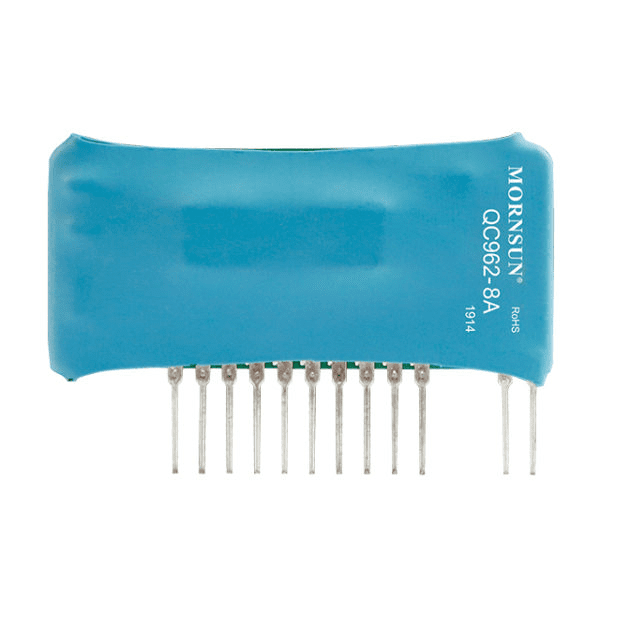

Mornsun Power Supply Gate Driver QC962-8A-IC-1244-D

Get the high-quality QC962 IGBT Gate Driver at the best price in India.

QC962 is a hybrid integrated IGBT driver designed for driving N-channel IGBT modules in any gate amplifier application. The device provides the required electrical isolation between input and output with the opto-coupler. Short circuit protection is provided by a built-in desaturation detector. A fault signal is provided if the short circuit protection is activate.

QC962 IGBT Gate Driver Features:-
Built in high CMRR opto-coupler (CMR: Typical: 30kV/μs, Min.:15kV/μs)
Two supply drive topology
TTL compatible input interface
Electrical isolation voltage between input and output with opto-couplers (Viso=3750VRMS/min)
Built in short circuit protection circuit with in for fault output
Soft IGBT turn-off and protection circuit time reset
Controlled time detected short circuit
Switching frequency up to 20kHz
Pin and characteristic are compatible with M57962AL

QC962 IGBT Gate Driver Applications:-
General-purpose Inverter
AC Servo Systems
Unint erruptable Power Supplies(UPS)
Welding Machines

Explore all the Latest Products of Gate Driver

Attachment
Mornsun Gate Driver QC962 Datasheet
