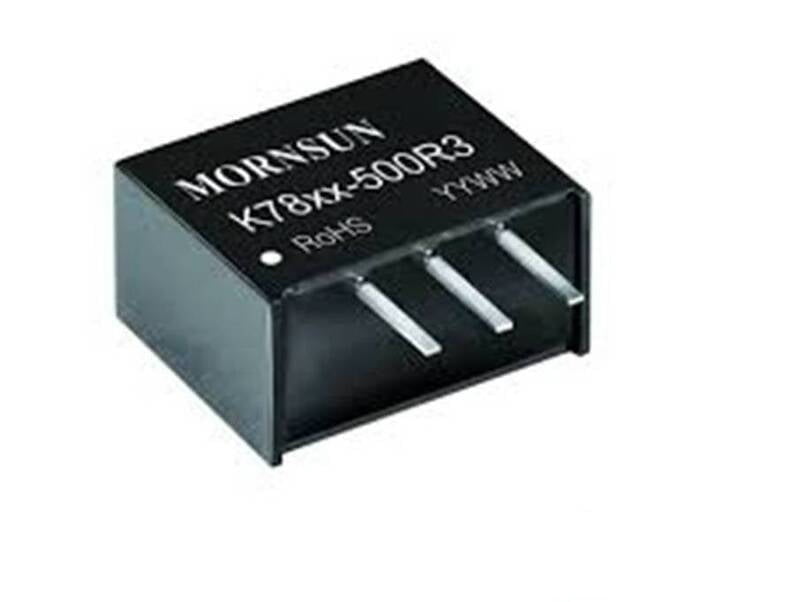

K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter – PO-1713-D

K78xx-500R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The product is featured with high efficiency, low loss, short circuit protection , support the negative output and no heat sink requirement. They are widely used in industrial control, instrumentation, and electric power applications.

Get the high-quality K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter at the best price in India.

K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter Features:-
· High efficiency up to 95%

· No-load input current as low as 0.2mA

· Operating temperature range: -40℃ to +85℃

· Support the negative output

· Output short circuit protection

· Pin-out compatible with LM78XX linear regulators

· UL60950,EN60950 approval

K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter Specifications:-
Casing Material Black flame-retardant and heat-resistant plastic (UL94-V0)
Package Dimensions : 11.60*7.55*10.16 mm
Weight 1.8g (Typ.) Cooling Method Free air convection

To know more about all latest Products of Non Isolated DC-DC Converter you can visit at www.campuscomponent.com

Attachment:-
K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter- Datasheet
