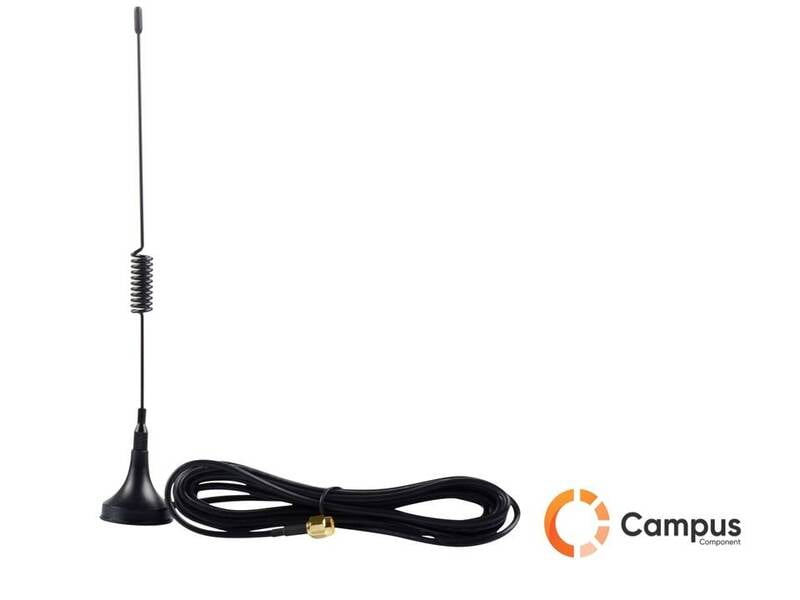

GSM 3DBI Magnetic Mount Spring antenna -AN-88-D

Get the high-quality GSM 3DBI Magnetic Mount Spring antenna at the best price in India.

GSM 3DBI Magnetic Mount Spring antenna is designed for GSM GPRS 900/1800mhz system of communication terminal system. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater ,GSM sensor, GSM module & GSM modems.

GSM 3DBI Magnetic Mount Spring antenna Electrical Specifications:-

Frequency range(MHz) 900-1800
Bandwidth (MHz) 70/170
Gain (dBi) 3
VSWR ≤2.0
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Input connector type SMA Male or Requested
GSM 3DBI Magnetic Mount Spring antenna Mechanical Specifications:-
Dimensions(mm) 30×200
Antenna weight(g) 50
Mounting way Magnetic adsorption
Operating temperature(°c) -40~60
