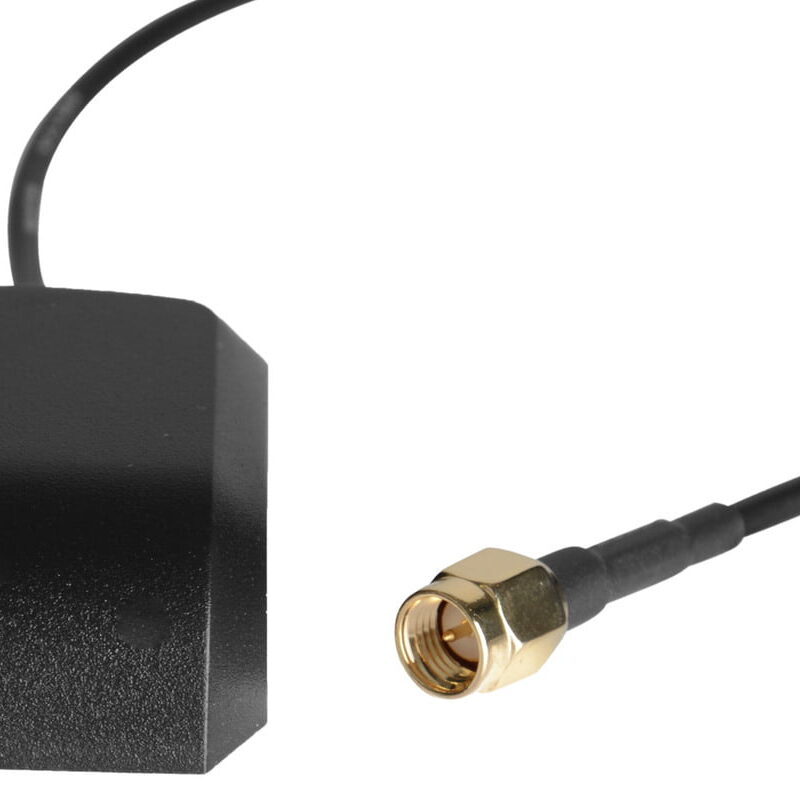

GPS Antenna With Glonass-AN-986-D

GPS Antenna With Glonass Feature:-
High gain
Compact Pin type Customization available

Get the high-quality GPS Antenna With Glonass at the best price in India.

GPS Antenna With Glonass Electrical Specifications:-
Centre Frequency: 1590± 3.0 MHz
Return Loss @ F0: ≥ 15 dB
Bandwidth @ 10dB Return loss: ≥ 20 MHz
Polarizetion: RHCP
Zenith Ground plane: 70×70 mm
Impedance: 50 Ω
Frequency Temperature Coefficient: ± 20 ppm/℃
Operation Temperature Range: -40 ~ +85℃

To know more about all latest Products of GPS Antenna you can visit at www.campuscomponent.com

Attachment:-
GPS Antenna With Glonass: Datasheet
