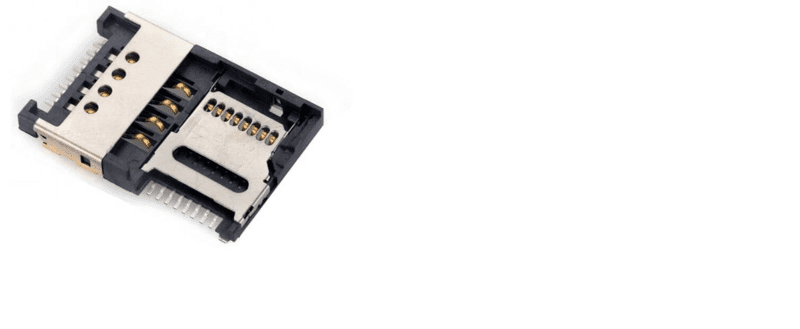

Combo_SIM card and SD card holder-SI-555-D

Combo_SIM card and SD card holder General characteristics:-

Dimensions:27.20L*17.20W*2.60H mm
Weight:Approx1.20g
Contact principle: Friction technology
Operating position: shaft up/down/horizontal
Mounting system: SMT(without post)
Durability:3,000 cycles min

Combo_SIM card and SD card holder Electrical characteristics:-

Number of contact:8pin SIM+8Pin TF
Contact resistance:50MΩ typical,100MΩ max
Insulation resistance:>1000 MΩ/500V DC

To know more about all latest Products of SIM Card and SD Card Holder you can visit at www.campuscomponent.com

Attachment:-
Combo_SIM card and SD card holder datasheet
