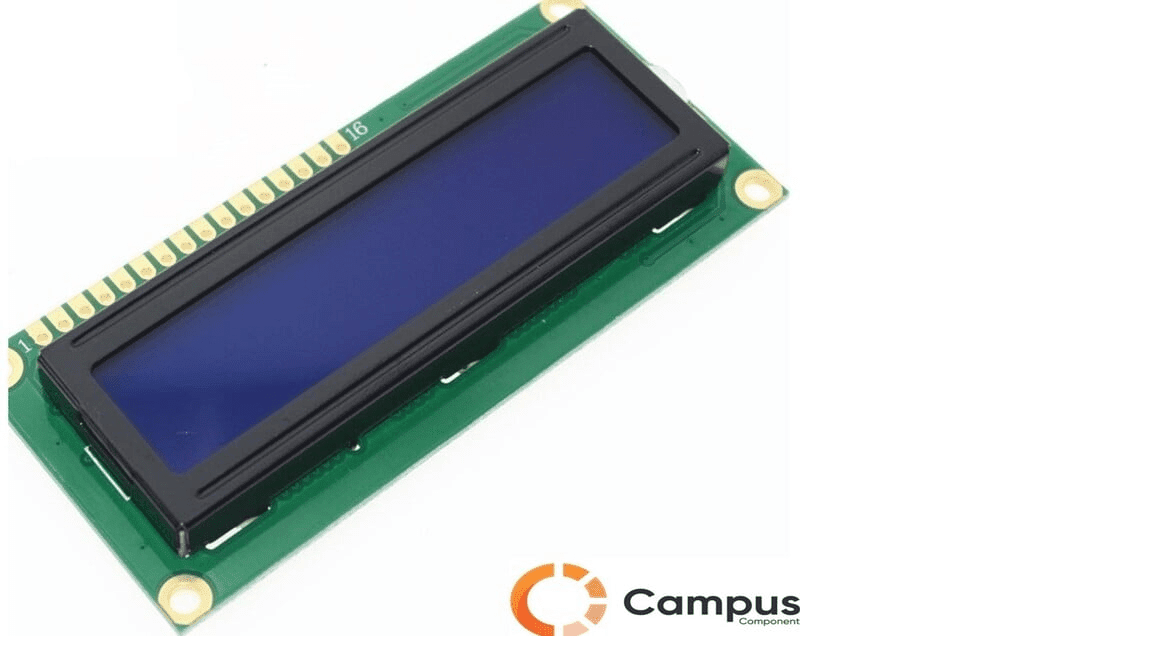

16×2 (S) LCD Blue Backlight-LC-535-D

LCD1602 (yellow-green screen) Standard 16X2 LCD character module (backlight / yellow-green) 1602 standard 16-pin interface, including: VSS is the ground power, VDD then 5V positive power supply. V0 LCD contrast adjustment end, then the positive power supply when the contrast is the weakest, the highest contrast when grounded power, the contrast is too high will have a “ghosting”, when used by a 10K potentiometer to adjust the contrast. RS for the register selection, high-level data register selection, low-level instruction register selection.

Get the high-quality 16×2 (S) LCD Blue Backlight at the best price in India.

R / W for the read and write signal lines, high-level read operation, and low-level write operation. When RS and RW together low can write instruction or display address, when RS is low, RW is high, you can read busy signal, when RS is high, RW is low, and you can write data. E end is enable end, when E end jumps from high level to low level, the liquid crystal module carries out the order. D0 ~ D7 for the 8-bit bidirectional data lines. The positive power supply backlight.

16×2 (S) LCD Blue Backlight Features:-
Display Contents :16 * 2 Characters (5*8 dots )
Driving Scheme : 1/16Duty; 1/5Bias
Viewing Direction :6 0’ clock
Driver IC :AIP31066
Interface :Parallel
Backlight :white/Yellow-Green
Operating Temperature :-20　C－﹢70　C
Storage Temperature :-30　C－﹢80　C
RoHS Compliant
16×2 (S) LCD Blue Backlight Specifications:-
Outline Dimensions : 80.00(W) x 36.00(L) x 13.00(H)(mm)
Viewing Area : 64.50 (W) x 14.50(L)(mm)
Active Area : 55.70 (W) x 11.00 (L)(mm)
Character size : 2.90 (W) x 5.15 (L)(mm)
Character Pitch : 3.52 (W) x 5.85 (L)(mm)
Dot Pitch : 0.54 (W) x 0.60 (L)(mm)
Dot Size : 0.59 (W) x 0.65 (L)(mm)
